Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

  • 1
  • 2
  • 3

Delivery Time : 40 days

Repeatability : ±0.07mm

Certification : ISO9001

Power supply : Three-phase five-wire system, 3×380V±10%/50HZ

Supply Ability : 300 sets/year

Load capacity : 12KG

Degrees of freedom : 7 axis

Payment Terms : L/C, T/T

Near field of view : 461×255mm@300mm

Visual accuracy : ≤0.5mm

Price : Negotiable

Packaging Details : Wooden case

Light resistance : 180000Lux

Place of Origin : China

MOQ : 1 set

Arm span : 2010mm

Brand Name : Auten

Contact Now

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply Three-phase five-wire system 3×380v±10%/50HZ —
Degrees of freedom Adapt to workpiece conditions —
Number of robots configured single unit single unit two units Four units Depends on the design
Total power consumption 34kw 37kw 68kw 136kw Corresponding to different configuration quantities
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

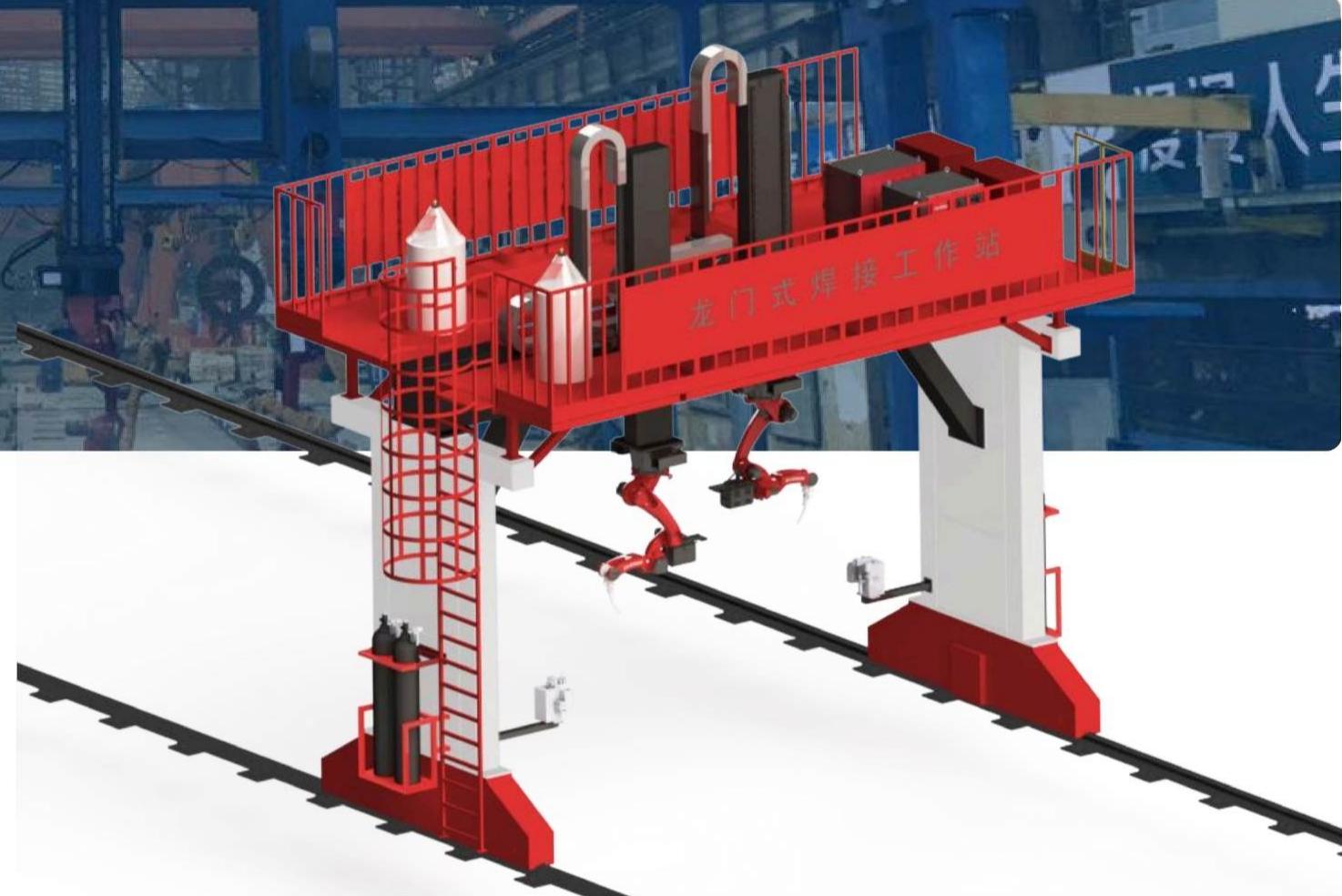

This gantry-type welding robot is installed upside down, allowing multiple units to work collaboratively via the gantry frame beam.

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

It supports multi-axis linkage (X/Y/Z) and external extension axis configurations, making it suitable for multi-angle welding of large workpieces such as ship assembly components. It can operate as a single machine, in pairs, or in groups of four, significantly improving efficiency. Utilizing a servo-driven backlash-free reducer and a programming-free system, it automatically plans the welding path and tracks the weld seam, ensuring precise welding trajectory.

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
