1465mm,2010mm Arm Span A Robotic Welding Workstation 12KG Load Capacity
Standard Welding Workstation Introduction
A robotic welding workstation mainly consists of a welding robot, welding power source, welding torch, advanced welding functions, gantry rails, positioner, and tooling fixtures. The intelligent robot, combined with flexible external axes, not only expands the working area and improves welding quality, but also enables multi-position welding, fully meeting the welding needs of various complex workpieces.
Performance Specs
| Category | Content | Main Technical Parameters |
Robot performance | Arm span | 1465MM,2010MM |
| Repeatability | ±0.03MM,±0.07MM |
| Load capacity | 12KG |
Overall parameters | Degrees of freedom | 6-axis - 11-axis |
| Power supply | Three-phase five-wire system 3×380V±10%/50HZ |
| X-axis traverse speed | ≥20/MIN |
| Y-axis traverse speed | ≥12/MIN |
| Z-axis traverse speed | ≥8/MIN |
| Positioner rotation speed | 0.05-0.9RPM |
| Positioner tilting speed | 0.14-0.4RPM |
Integrated Features
1. High Efficiency and Stability for Continuous Operation
Supports 24-hour continuous production, significantly improving production efficiency. Reduces reliance on manual welding techniques, minimizes human error, and helps enterprises reduce costs and increase efficiency.
2. Safety and Environmental Protection for Improved Working Environment
Intelligent welding technology reduces arc light, smoke, and spatter, effectively minimizing the impact on worker health. Combined with the Sicheng fume purification system, it creates a cleaner production environment.
3. Precise Control and Stable Welding Quality
Consistent welding parameters ensure weld consistency and reduce rework rates. Intelligent detection technology effectively avoids the impact of environmental factors on welding quality.
4. Flexible Operation and Adaptability to Diverse Welding Needs
Possesses a wide operating range, supporting multi-angle and multi-position welding. Suitable for welding complex structural components, meeting the automation production needs of multiple industries.
Standard Workstation Series
The robot standard workstation can achieve more than 200 combinations of robots, positioners, and ground rail gantry to meet the flipping and repositioning requirements of various workpieces and satisfy the welding process specifications of the workpieces.
1. Simplified Manufacturing, Enhanced Efficiency
By rapidly welding multiple components into a single unit, precise workpiece positioning is achieved, resulting in both strength and efficiency, thus facilitating comprehensive industry upgrades.
2. Flexible Combinations to Meet Complex Needs
Automatic structural component welding can flexibly select and combine small parts of different shapes, sizes, and materials according to different design requirements, meeting the demands of complex structures and improving production efficiency.
3. Multi-Product Compatibility, Intelligent Automatic Adaptation
Flexibly adapting to various small parts, the Sicheng small component welding system can assemble on demand, intelligently identify components, and is compatible with multiple materials, meeting the needs of complex structures while improving production efficiency.
Applications
Engineering Machinery: Used in the production of various precision mechanical parts, such as those for the automotive and aerospace industries.
Shipbuilding: High-strength welding for ship structural components, cabin frames, etc.
Building Steel Structures: Used in steel structure buildings to improve the load-bearing capacity and seismic performance of the structure.

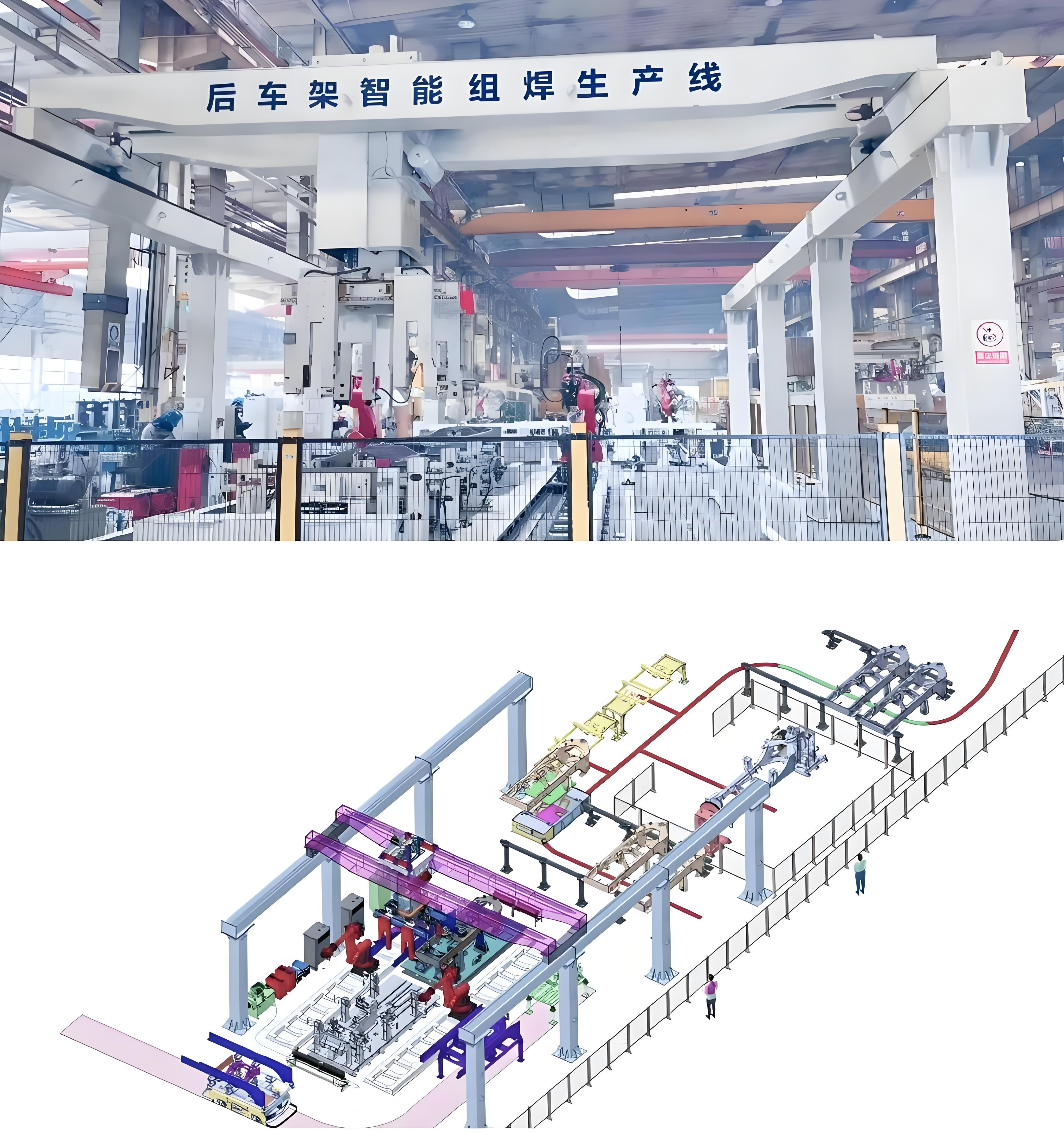

Application Cases:
|
|
